Spares Stenter

Krishna Engineering Works have been manufacturing Spares of Stenter Machine, Stenter Machine Pin Bar, Stenter Clip from last 25 years from India. High-quality Spares of Stenter for heavy duty and longer durability. We manufacture, export and supply all types of Spares Stenter. We are also leading in exporting and web guiding system and rubber rollers. We are dealing on Spares Stenter for machines like,

  • Artos
  • Dhall
  • Harish
  • Harish Supra
  • Yamuna
  • Hi-Tech
  • S.M.
  • Montex
  • Swastik
  • Bruckner
  • Babros
  • Ambika
  • Primatex
  • Krantz
  • Bharat Eng
  • Monfort
  • Wakayama
  • Stenmech Lucy
  • James Farmer Norton
  • Famatex

Spares Stenter

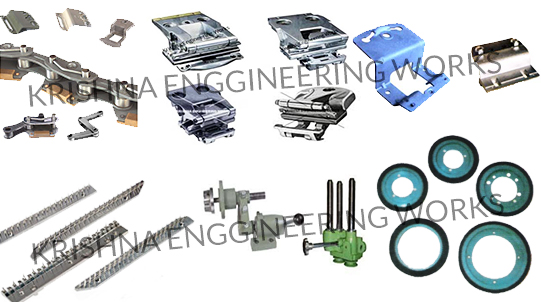

    • Basic Spares Stenter:
  • Mechanical Cloth Guider Complete Set
  • Adjsuting Frame for the above
  • Rubber Sleeve 4″ OD x 3″ ID x required length
  • Synthetic Sleeve for above specification
  • Curved Bar Expander Roll width upto 78″ long x 4″ OD x 3″ ID
  • PIN-ON AND POST-PIN Brushes For Harish. Artos/SM
  • 3 Row Brushes
  • Row Brushes
  • Row Brushes
  • For Famatex / Primatex Stenter Machine Brushes
  • Clips with Pin Carrier for Harish Stenter
  • Clips with Pin Carrier for Artos / SM Stenter
  • Rubber Fillet Emery Type in 100 Mtr. Length Roll
  • Rubber Fillet Round Pimple in 100 Mtr. Long Roll
  • Pin Bars for Harish/Artos/SM (42 / 51 / 53 / 72 Pins)
  • Clip Type Feeler Switch for Harish Stenter (per ser i.e. 2 nos)
  • Pin Type Feeler Switch for Harish Stenter (per ser i.e. 2 nos)
  • F-10 Feeler Switch for Artos / SM
  • Oil Cup 1/2″ bsp thread (one pair i.e. 2 nos)
  • Clip Opener for Artos / SM (Moulded Hylum)
  • Clip Opener for Harish Stenter
  • Clip Opener for Famatex / Primatex Stenter
  • Endless Nylon Belet (Rope Type) for Feeder Drum
  • Sandwitch Belt (flat elt) for Overfeed Device
  • Reversible Magnetic Coupling (Feeder Drum) with motor
  • Uncurrler with 2 Spindle (SS Finger)
  • Uncurrler with 3 Spindle (SS Finger)
  • Aluminium Uncurrler Spindle 260mm long
  • SS Spindle
  • Bottom Parts complete with big and small Mssynthered roller pin, Chain
  • Clip Complete for Famatex

Technical Specification

 CONTROL

 Control panel for the machine will be fabricated by 16 guage CRC finished with powder coating after defrosting procedure panel will be incorporated with the electric switch gears as per I.S. std of required capacity.

 DRIVE

 The machine running with D.C. drive, main drive motor of padding mangle and Stenter are teps D.C. motors reduction gear box is coupled with the main motor of Stenter machine.

 FINISHING

 Machine will be finished with red oxide putty & primmer paint and finally with 3 coats of industrial paint. Optionally finished with powder coating process at extra coats.

 IMPORTANT NOTE

 The length & width of the Stenter machine, no. of the chambers, HP. Of D.C. / A.C. motors varies according the buyers requirements operating manual wiring diagram of the control panel & foundation plan will be provided with the machine. We reserve the right to modify / alter the design / specifications without prior notice.
