Corrugated Box Machinery

All types of Paper Mills & Paper Converters require Slitting of Paper for different type of applications. Our Heavy Duty Paper Slitting Rewinding Machine comes in use for Slitting of all types of Paper Material like Coated Paper, Ice Cream Cup Paper, Fax Roll, Photograph Paper, Stationery Paper, etc. Our Paper Slitting Rewinding Machine is able to process all types of Paper of any GSM thickness. In our Heavy Duty Series Paper Slitting Rewinding Machine, Rewinding Diameter can be achieved up to 1200 mm.

We have been successfully Manufacturing, Exporting & Supplying all types of Heavy Duty Paper Slitting Rewinder Machine since last 25 years from Ahmedabad, Gujarat, India, with more than 1400 installations all over India and overseas like Saudi Arabia, UAE, Dubai, Sharjah, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, etc. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing.

High quality and heavy duty Corrugated Box Machinery from India.

Technical Specification

Technical Specification of Corrugated Box Machinery

Corrugated Box Machinery

A) 4 Bar RotaryCreasing & Cutting Machine:

TECHNICAL DATA
SizeSheet Feed Min. / Max.Motor H.P.Floor SpaceApprox. Wt. In kg.
65″15″ / 60″1.08′ X 5′2000
75″15″ / 70″1.59′ X 5′3000
85″15″ / 80″1.510′ X 5′3300

SPECIFICATIONS:

  • This machine is used for cutting and creasing on the corrugated sheets simultaneously.
  • The machine has four cutting and four creasing dies.
  • Both the cutting & creasing dies are made in two half for easy to adjust or move from the shaft.
  • The machine is sturdy and contains graded alloy steel knives for long life sharpness & smooth cutting.
  • Its function is creasing & cutting the corrugated sheet as per required measurement.
  • Gauges are provided for accurate cutting and creasing of sheets.

TECHNICAL DATA:

MachineMotorFloor SpaceMachine HeightGross WeightProduction Capacity
Size(H.P)
65″1.555″ x 85″48″2,2005,000
75″255″ x100″48″2,6005,000
85″255″ x110″48″2,8005,000
95″255″ x 120″48″3,0005,000
105″255″ x130″48″3,2005,000



B) Board Cutter

TECHNICAL DATA

SizeFloor SpaceApprox. Wt. In kg.
45″5’ X 6’450
55″6’ X 6’500
65″7’ X 6’550



C) Eccentric Slotter

TECHNICAL DATA

SizeSlot Depth Max.Min Distance Between 2 SlotsMotor H.P.Floor SpaceApprox. Wt. In kg.
65″12″4″1.58’ X 4’2000
75″12″5″2.09’ X 4’3000
85″12″5″2.010’ X 4’3300

SPECIFICATIONS:

  • The machine punches out the slots and stitch edges of corrugated sheet.
  • The slots units are mounted over an eccentric roller causing them to move accurately, as required.
  • The machine has three slotting and one corner cutting heads, capable to punch out a number of boards at a time.
  • Guides are provided on the feed table, to support the sheet at accurate angle & dimension.
  • The rack arrangement is there to set the paper adjustment of knives easily.
  • Knives are operating like scissor for precision and smooth cutting.

TECHNICAL DATA

MachineMinimumMaximumMotorFloor SpaceMachineGrossProduction
SizeSpaceSlot depth(H.P)HeightWeightCapacity
Between Slots
65″5″12″255″x 90″58″2,20030
75″6″18″358″x 100″62″2,80030
85″6″18″358″x 110″62″3,00030
95″6″18″358″x 120″62″3,20030
105″6″18″358″x 130″62″3,40030

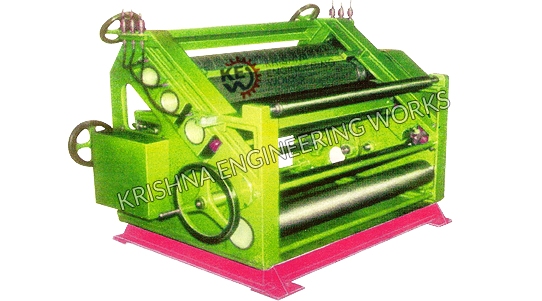

D) Oblique Single Face Paper Corrugated Machine

TECHNICAL DATA

SizeMotor H.P. M/c./ R/s.Heater LoadMax. Speed RFT / Min.Floor SpaceApprox. Wt. In kg.
42”5.0 / 1.521 KW10016’ X 7’3250
52”7.5 / 1.521 KW10016’ X 8’3750
62”7.5 / 1.521 KW10016’ X 9’4250

SPECIFICATIONS:

  • This is heavy duty an exclusively high precision and robust type machine is design for high production speed.
  • The flute rolls are mounted on heavy duty bearings for high smooth running and longer life.
  • The flute rolls are minutely finished to give perfect impression on the board.
  • The gum rollers are hard chrome for better performance and life.
  • The machine design to run on Electric / Steam Heating.
  • Two pre-heaters are provided to demoisturise the paper.
  • The flute rolls are made of special alloy steel for better performance and life.
  • The machine has motorized self loading twin shaft reel stand with three unwinding shafts helps in easy operation saving time.

TECHNICAL DATA

MachineMotorBoilerSteamFloorMachineGrossProduction
SizeRequiredKcal/HrPressureSpaceHeightWeightCapacity
(H.P)(Kg/cu(Kgs)(RF/PM)
Mtr)
42″101 Lac12-Oct96″ x 180″72″4,000150
52″101 Lac12-Oct105″ x 180″72″4.2150
62″101 Lac12-Oct115″ x 195″72″4,600150
72″151.5 Lac14-Dec125″ x 200″72″4,800150
82″152.0 Lac14-Dec135″ x 210″72″5150

E) Rotary Sheet Cutter

TECHNICAL DATA

SizeMotor H.P.Cutting Length Min. / Max.Max. Output Sheet / Min.Floor SpaceApprox. Wt. In kg.
52”220” / 80”806’ X 8’1900
62”220” / 80”807’ X 8’2100

SPECIFICATIONS:

  • This machine is designed for high production and straight cutting of sheet or two ply corrugated board without damaging flutes & liner paper.
  • This Machine can be used as an independent unit or can be synchronized to a Corrugation machine for direct and accurate sheet cutting which minimizes the percentage of wastage.
  • PIV Gear box is provided for adjusting of sheet to the required length.
  • A delivery conveyor is provided to carry the sheets out.
  • Variable speed motor is recommended for economy in wastage at an Additional cost.

TECHNICAL DATA

Machine SizeMotor Required(Cutting Length)Floor SpaceMachine HeightGross WeightProduction Capacity
(H.P) manual reel stand(mini / max)(Kgs)(min/max)
45″320″/80″82″x120″48″160020″ / 60″
52″320″/80″90″x120″48″180020″ / 60″
56″320″/80″95″x120″48″190020″ / 60″
62″320″/80″100 x120″48″200020″ / 60″
72″320″/80″110 x130″48″ 220020″ / 60″

F)Sheet Pasting Machine:

TECHNICAL DATA

SizeMotor H.P.Floor SpaceApprox. Wt. In kg.
65”0.58’ / 3’700
75”0.59’ / 3’750
85”0.510’ / 3’800

SPECIFICATIONS:

  • This machine is used for applying glue on the tip of the corrugated surface of board and specially designed for pasting corrugated sheets of different ply and thickness.
  • All rolls are grinded, balanced hard chromed are called glue pickup roll, pressure roll & doctor roll.
  • Gum tray is provided to store the gum.
  • Side setting is provided to set gum in this machine.
  • Setting of gum can be done in microns as desired.
  • It saves the time and gum and the final product dries fast because of the minimum application of the gum.
  • All rollers are fitted with ball bearing for smooth running and longer life.
  • The machine is simply designed, strong in construction and is easy to operate.
  • It assures faultless working during continuous operation.

TECHNICAL DATA:

MachineMotorFloor SpaceMachineGross WeightProduction Capacity
Size(H.P)Height
65″0.530″ x 85″45″5005000
75″0.530″ x 96″45″6005000
85″0.530″ x 105″45″7005000
95″0.530″ x 105″45″8005000
105″0.530″ x 125″45″9005000

G)Sheet Pasting Machine:

TECHNICAL DATA

SizeMotor H.P.Floor SpaceApprox. Wt. In kg.
45” X 65”1.54.0’ X 5.5’900
65” X 75”2.05.5’ X 6.5’1000
65” X 90”2.05.5’ X 7.5’1200

H)Stitching Machine:

SPECIFICATIONS:

  • This Machine is meant to stitch the corrugated boxes.
  • The machine is driven by coil spring clutch.
  • The machine is fitted with thickness setter to adjust the gap depending on the board thickness.
  • The parts are standardized, and are inter changeable and made of alloy steel.
  • The machine can continuously run at a high speed.
  • This machine is exclusively designed for accuracy and quality stitching.
  • This machine is available in Straight / Angular / Bottom models.

TECHNICAL DATA



MachineMotorFloorMachineGross Weight approx (Kgs.)Production
SizerequiredSpaceHeightCapacity(Stitches Per Minutes)
(H.P)
20″0.520″ x 38″60″250350
30″0.520″ x 48″60″250350
36″0.520″ x 55″60′275350
42″0.520″ x 62″60″300350
48″0.520″ x 68″60″300350
