Jigger Machine

Standard Features

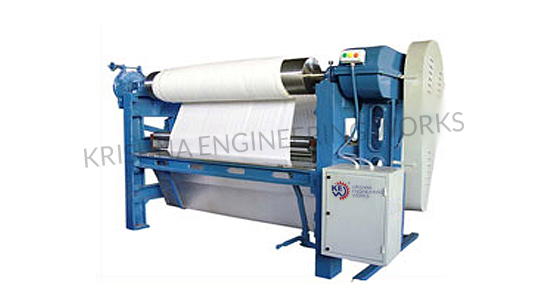

Jigger Machine

We are a leading manufacturer, exporter, and supplier of Jigger machine. Heavy duty Jigger Machine, Super Jumbo Jigger with high-quality equipment.

Main Rolls
Ebonite Roller / Stainless Steel.
Mounting Frame
The frames are made of graded cast-iron rigidly connected by means of cast-iron tie bars.

Gear Box
The drive to the main roll is given through differential gear box resulting in constant fabric speed.

Break Arrangement
Each batching roll fitted with breaks shoe permitting adjustment of fabric tension within the wide limit to suit heavy to a light fabric.

Liquor Tank
Stainless steel through fabricated out of 304/316 qty. 16swg. At the bottom, two stainless steel guide rolls of 3″Ø mounted on hylum bearing. Provision for drain, overflow provided.

Heating Device
Perforated steel pipe for direct heating & coil if required for indirect heating provided below the guide rolls.

Oscillating Device
Fitted above the through consisting of self-balancing rocker with guide rolls of 3″Ø and adjustable pipe expanders to give stretched and creaseless passage of the fabric.

Main Drive
3. H.P. / 7.5 H.P. Standard electric motor fitted below the gear box. Drive by ‘V’ belts totally enclosed. Reverse forward starter with panel box. Starters provided on either side of the gear box

Technical Specification

Technical Specification of Jigger Machine

  • Sizes Offered 48″, 60″, 66″, 72″, 84″, 90″, 96″ – 120″
Semi Jigger Jumbo Jigger
Draw Roll dia 7½” 12”
Capacity (Fabric) 120KGS 350KGS
Full fabric dia 24” 40”
Guide Rill dia 3” 3½”
Electric Motor 3.0 H.P. 960 Rpm 5.0 H.P. 960Rpm
Brake Drum dia 10” 12”
