Web Aligner System

Standard Features

Web Aligner System

    We are a leading manufacturer, exporter and supplier of Web Aligner System from last 25 years with high quality and heavy duty equipment. High quality parts included in Web Aligner System, Web Guiding System for International Standard of Machines. Web Aligner, Web Guiding system for different types of Machines like Doctoring Rewinding Machine, Winding Rewinding and Slitter Rewinder Machine .

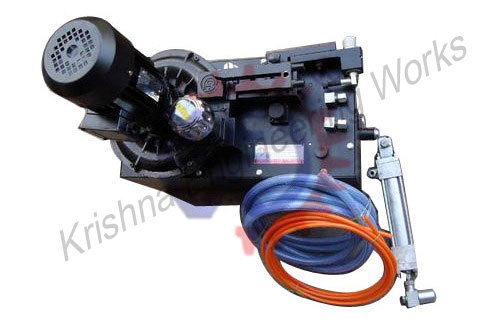

    Web Aligner System (Power Pack) Unit Complete With:

  • 0.5 H.P. Motor
  • Air Pipe – 5 Mtr.
  • Oil Pipe – 5 Mtr.
  • Sensor – 1 pcs
  • Adjuster – 1 pcs.
  • Air Filter – 1 pcs.
  • Oil Filter – 1 pcs.
  • Hydraulic Cylinder size 4”, 6” & 8”strock – 1 pcs.

SENSORS:

In the specially designed non-contact Air flow sensors, air is expelled from two opposing orifices. The differential air pressure is use to detect lateral wandering of the material in process. The Airflow sensors are self cleaning & fitted with fine adjustment mounting bracket.

HYDRAULIC CYLINDER:

It works on hydraulic pressure. It actuates the correcting frames. Available in different size from 2″ to 18″ stroke length.

Technical Specification

Technical Specifications for Web Aligner System:

TYPE

KEW–17

KEW–30

Motor rating (3 phase, 50 Hz)

0.5 HP

1HP

Pump flow rate

3.4 l/min

5.8 l/min

Tank capacity

17 liters

30 liters

Oil type

Servo 32, Enklo 44, Hydro 37

Line pressure

14 bar

21 bar

Max. Operation force (50.8 mm dia. Cylinder)

260kg

389.5 kg

Follow-up speed

Max. At 3.4 l/min

30mm/sec

At 5.8 l/min

40mm/sec

Air sensor air pressure

5 to 28 mbar, infinitely adj.

Weight including oil

40kg

60kg

Double Power Pack
Dual Web Aligner

We are skilled in offering the Double Power Pack renowned for providing high capacity, control options & configurations to be utilized in almost any application. The Double Power Pack is designed and manufactured using premium quality hydraulic components selected from a wide range and assembled using high technology systems which are designed with technologically advanced concept.

Electro-Hydro Web Aligner Unit
Benefits of Electro-Hydro Web Aligner Unit:

  • No maintenance
  • Labor saving
  • Electricity saving
  • No wastage
  • More production

STRUCTURE OF THE WEB ALIGNER

M. S. Tank and M. S. Plate

SYSTEM OF THE OPERATION IN RUNNING OF ELECTRO-HYDRO WEB ALIGNER

  • Electronic of the film Photocell sensor for edge.
  • Electronic 0 – 5 HP AC Motor.
  • Electrical Panel Board for Operate the complete Unit.
  • Hydraulic Cylinder – Adjuster – Oil Pipe.

TECHNICAL DATA

  • Speed of Unit 250/min
  • Variation of the film Winding is 0.5

Web Aligner System suitable for all types of Machines like:

  • Rotogravure Printing Machine
  • Lamination Machine / Coating Machine
  • Slitter Rewinder Machine
  • Doctoring Rewinding Machine
  • Paper Machinery
  • Textile Machine like Batching Machine, Inspection Rewinding Machine, etc
  • Tyre-Cord Machinery
