Automatic Guiding System

Standard Features

Automatic Guiding System

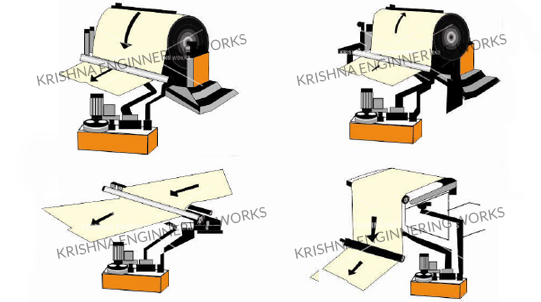

Automatic Guiding System is used for any winding & unwinding application for guiding the web to reduce the wastages of the material & to get high production output with minimum man power. Heavy duty Web Aligner, Web Guiding System with high quality material and parts for different industry specific machines. Web Aligner, Automatic Guiding System for Paper, Tyre code, Textile and many more Industry

Technical Specification

  • Completely manufactured from Vibration Free Heavy duty Channel Angle Stand.
  • Mechanical Break Joint with Hydraulic Cylinder.
  • Stand with bottom side Both the side M.S. Heavy Plate with support, Tie-Road, Guide Rollers.
  • Top side M.S. Plate for Fixing the Safety Chucks.
  • Complete in all respects and putting the same in perfect working condition suitable for your Fabric Rewinder Machine and load capacity up to 2 Tons (2000 KGS.).
